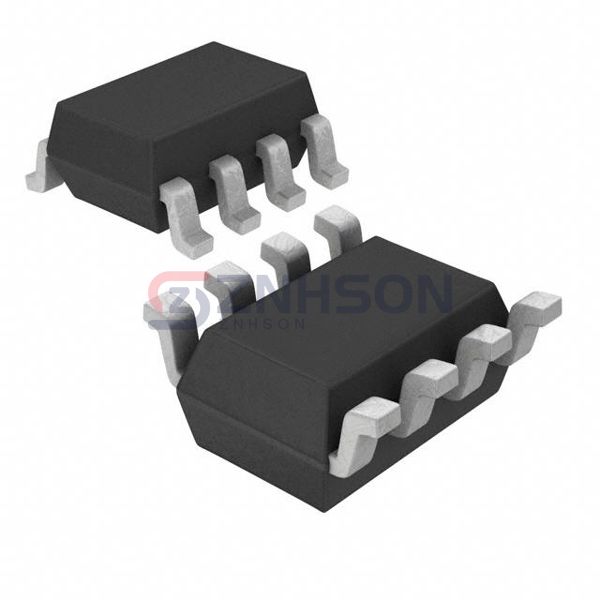

LT3009ESC8-1.2#TRMPBF
Analog Devices Inc.
Analog Devices Inc.
IC REG LINEAR 1.2V 20MA SC70-8
$2.95
Available to order
Reference Price (USD)
500+
$1.23500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc.'s LT3009ESC8-1.2#TRMPBF represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the LT3009ESC8-1.2#TRMPBF are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.45V @ 20mA
- Current - Output: 20mA
- Current - Quiescent (Iq): 6 µA
- Current - Supply (Max): 1 mA
- PSRR: 68dB (120Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-VFSOP (0.049", 1.25mm Width)
- Supplier Device Package: SC-70-8
