LT3066IMSE-3.3#PBF
Linear Technology
Linear Technology
LT3066 - 45V VIN, 500MA LOW NOIS
$3.82
Available to order
Reference Price (USD)
1+
$5.33000
25+
$3.53880
100+
$2.92600
250+
$2.77972
500+
$2.71700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the LT3066IMSE-3.3#PBF linear voltage regulator IC by Linear Technology, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this LT3066IMSE-3.3#PBF model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 45V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.51V @ 500mA
- Current - Output: 500mA
- Current - Quiescent (Iq): 125 µA
- Current - Supply (Max): 25 mA
- PSRR: 71dB (120Hz)
- Control Features: Current Limit, Enable, Power Good, Soft Start
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 12-TSSOP (0.118", 3.00mm Width) Exposed Pad
- Supplier Device Package: 12-MSOP-EP
Related Products
ABLIC Inc.
S-1315C16-A6T2U3
Texas Instruments
TPS780330200DDCR
ABLIC Inc.
S-13A1C00-U5T1U3
Texas Instruments
LM2940IMPX-5.0/NOPB
Diodes Incorporated
AP7315-295FS4-7B
onsemi
NCP114AMX300TCG
Diodes Incorporated
AZ1084CS2-3.3TRG1
onsemi
CAT6243DCADJ-RKG
Monolithic Power Systems Inc.

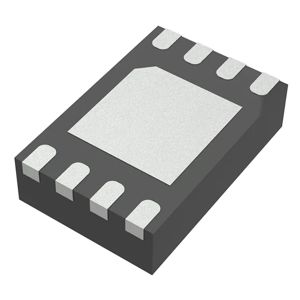

MP2002AGD-P
