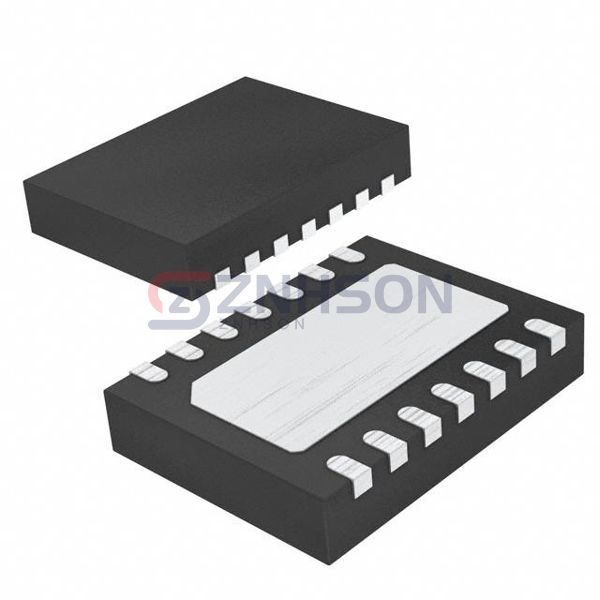

LT3091IDE#TRPBF

Analog Devices Inc.

Manufacturer

Analog Devices Inc.

Description:

IC REG LIN NEG ADJ 1.5A 14DFN

Datasheet:

LT3091IDE#TRPBF Datasheet

$8.93

Available to order

Reference Price (USD)

2,500+

$4.18600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LT3091IDE#TRPBF from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Negative
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): -36V
Voltage - Output (Min/Fixed): 0V
Voltage - Output (Max): -32V
Voltage Dropout (Max): 0.45V @ 1.5A
Current - Output: 1.5A
Current - Quiescent (Iq): 50.5 µA
Current - Supply (Max): -
PSRR: 85dB ~ 20dB (120Hz ~ 1MHz)
Control Features: Current Limit, Enable
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 14-WFDFN Exposed Pad
Supplier Device Package: 14-DFN (4x3)
