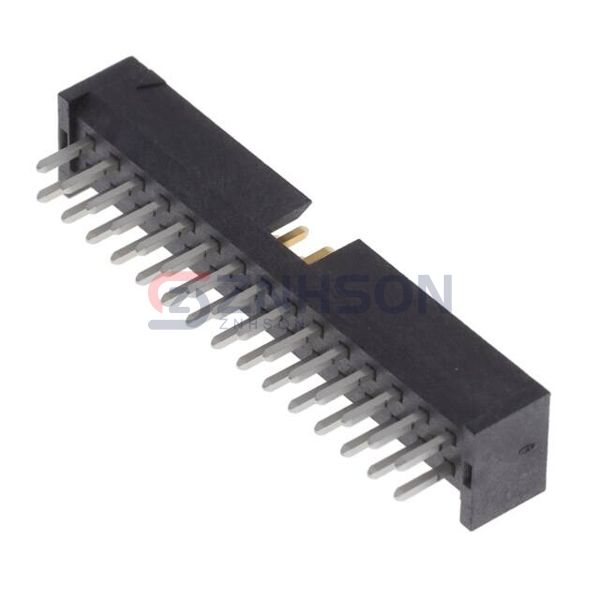

LTMM-115-02-L-D

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 30
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.120" (3.05mm)
• Contact Length - Post: 0.117" (2.97mm)
• Overall Contact Length: -
• Insulation Height: 0.190" (4.83mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Contact Finish - Post: Tin
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Keying Slot
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
