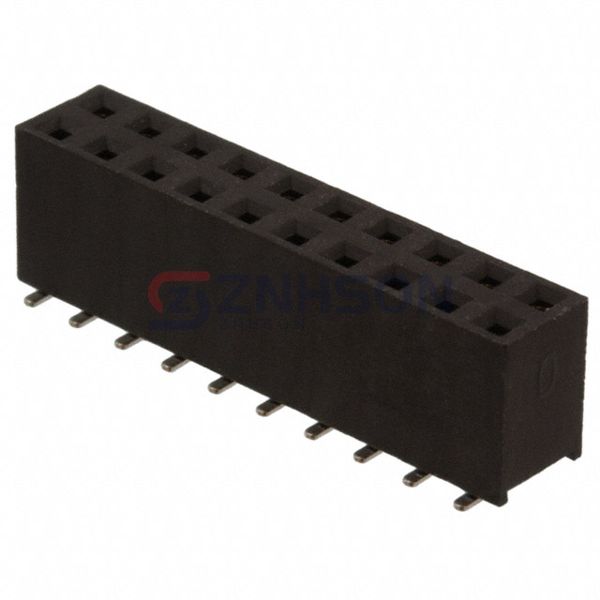

M20-7871042
Harwin Inc.
Harwin Inc.
CONN RCPT 20POS 0.1 GOLD SMD
$3.12
Available to order
Reference Price (USD)
1+
$2.62000
10+
$2.37700
100+
$2.03700
500+
$1.69750
1,000+
$1.45500
5,000+
$1.29010
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with M20-7871042 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Harwin Inc. connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom or Top Entry
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.295" (7.50mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 10.04mm, 11.63mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: 1000V
