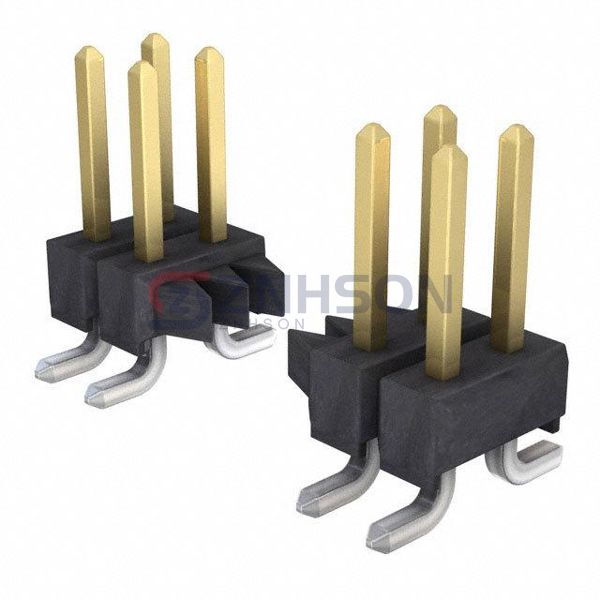

M20-8750342R
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 6POS 2.54MM
$0.80
Available to order
Reference Price (USD)
300+
$0.62600
600+
$0.56340
900+
$0.54776
1,500+
$0.46950
3,000+
$0.45385
7,500+
$0.43820
15,000+
$0.40690
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the M20-8750342R rectangular connector header from Harwin Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the M20-8750342R adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Harwin Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
