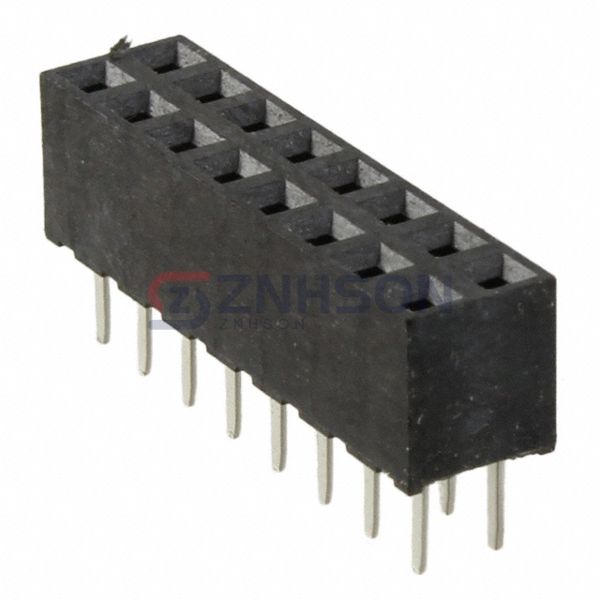

M22-7140842
Harwin Inc.
Harwin Inc.
CONN RCPT 16POS 0.079 GOLD PCB
$2.69
Available to order
Reference Price (USD)
1+
$2.27000
37+
$1.93189
111+
$1.76396
518+
$1.47000
1,036+
$1.26000
5,032+
$1.11720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M22-7140842 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Harwin Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 16
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.173" (4.40mm)
- Contact Length - Post: 0.094" (2.40mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 5.8mm, 6.55mm, 6.8mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 2A
- Voltage Rating: 500VAC
