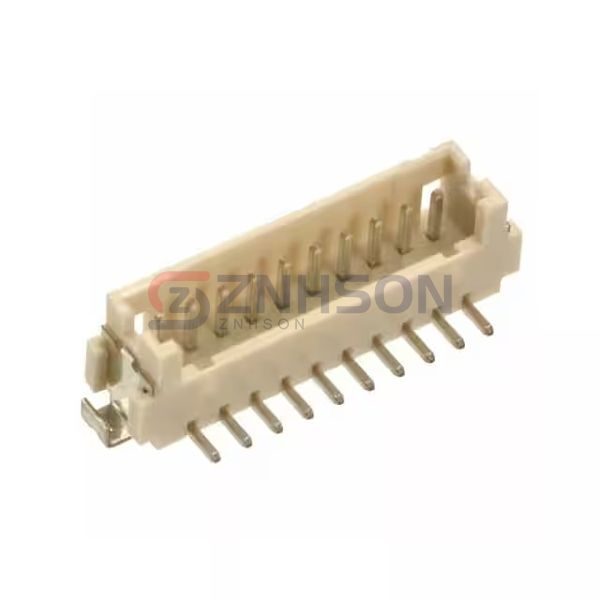

M30-6001246
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 12POS 1.25MM
$3.77
Available to order
Reference Price (USD)
1,015+
$2.97250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M30-6001246 male pin header by Harwin Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Harwin Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.189" (4.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Board Guide, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 150V
Related Products
Preci-Dip
351-80-152-00-017101
Samtec Inc.
TMM-106-05-L-S
Preci-Dip
350-80-149-00-019101
Adafruit Industries LLC
4389
Molex
90130-1316
Sullins Connector Solutions
NRPN122MAMS-RC
Amphenol ICC (FCI)
68604-136HLF
Preci-Dip

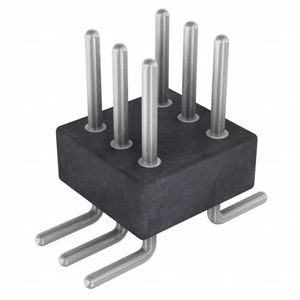

852-80-006-30-002101
TE Connectivity AMP Connectors

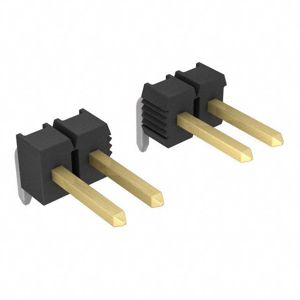

9-103765-0-38
