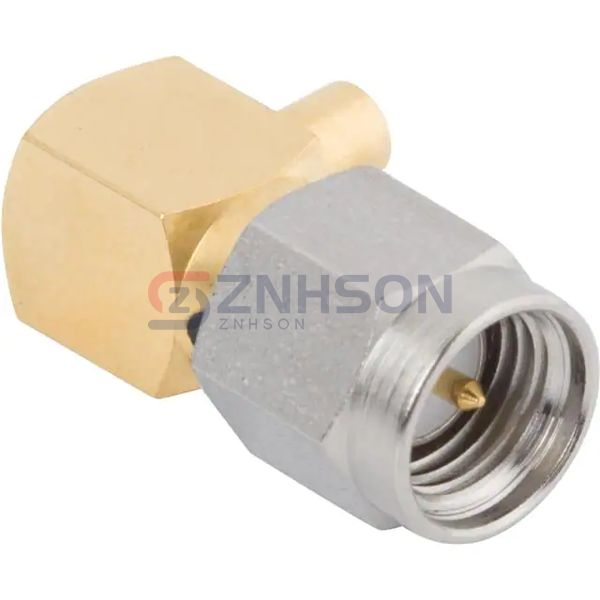

M39012/56-3109
Amphenol SV Microwave
Amphenol SV Microwave
CONN SMA PLUG R/A 50OHM CRIMP
$30.68
Available to order
Reference Price (USD)
100+
$25.88250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Amphenol SV Microwave's M39012/56-3109 series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The M39012/56-3109 is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-58, 142, 223, 400
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: -
- Features: -
- Housing Color: Gold, Silver
- Ingress Protection: -
- Center Contact Material: Brass
