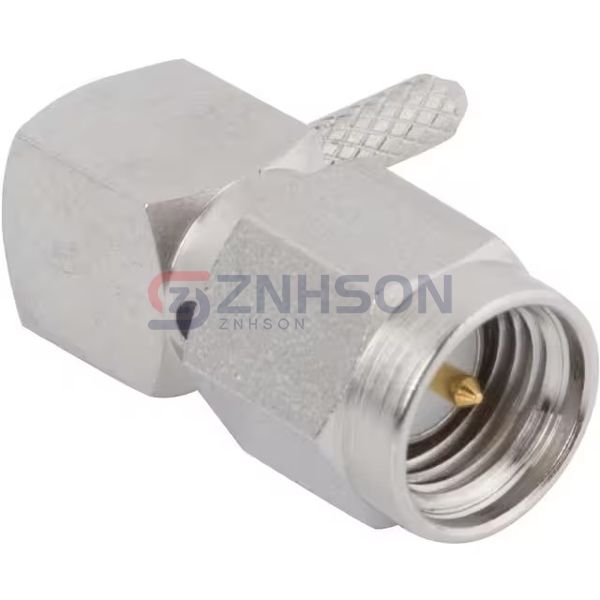

M39012/56B3116
Amphenol SV Microwave
Amphenol SV Microwave
CONN SMA PLUG R/A 50OHM CRIMP
$22.84
Available to order
Reference Price (USD)
100+
$21.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M39012/56B3116 from Amphenol SV Microwave represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The M39012/56B3116 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-58
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: -
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Radiall USA, Inc.
R113081097
TE Connectivity AMP Connectors
225087-5
Hirose Electric Co Ltd
MS-156C
Radiall USA, Inc.
R125078000
Amphenol RF
SMP-FS-C08-1-R
Amphenol RF
031-221-75RFX
Radiall USA, Inc.
R125488000
TE Connectivity Aerospace, Defense and Marine
1-225550-3
Sure-Seal

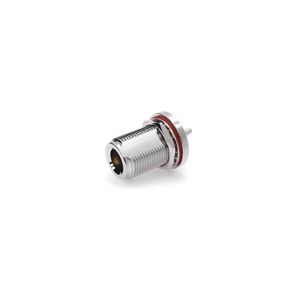

IPRF-N-J24A0N01-M-5
