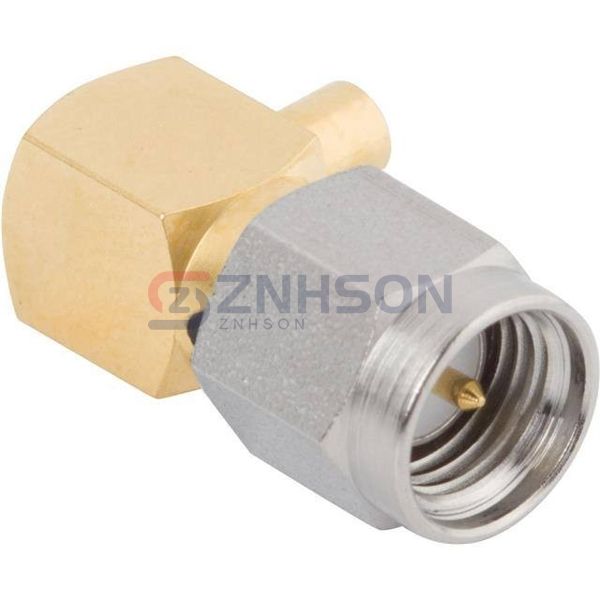

M39012/80B3101
Amphenol SV Microwave
Amphenol SV Microwave
CONN SMA PLUG R/A 50OHM SOLDER
$27.04
Available to order
Reference Price (USD)
100+
$23.08400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M39012/80B3101 from Amphenol SV Microwave represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The M39012/80B3101 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-405 (.085" Flexible)
- Fastening Type: Threaded
- Frequency - Max: 12.4 GHz
- Number of Ports: -
- Features: -
- Housing Color: Gold, Silver
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Molex
0731712970
Radiall USA, Inc.
R110426000
Cinch Connectivity Solutions Johnson
127-2701-221
Amphenol RF
000-79875
Radiall USA, Inc.
R161325000
Radiall USA, Inc.
4502-7041-010
Digiwave
DGA6089RG6
Amphenol RF

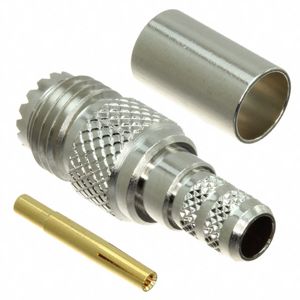

182113
Amphenol SV Microwave

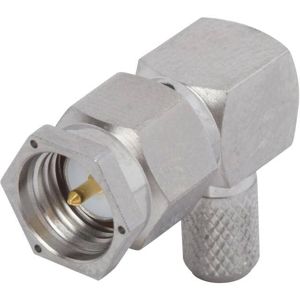

M39012/56-3006
