M40-4010346R
Harwin Inc.
Harwin Inc.
1.00MM PITCH SIL SMT HORIZONTAL
$0.36
Available to order
Reference Price (USD)
1+
$0.35784
500+
$0.3542616
1000+
$0.3506832
1500+
$0.3471048
2000+
$0.3435264
2500+
$0.339948
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M40-4010346R by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M40-4010346R supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.118" (3.00mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50VAC/DC
Related Products
Samtec Inc.
T2M-120-01-L-D-SM-DS
Samtec Inc.
TMM-112-06-L-S
JST Sales America Inc.
B3P-SHF-1AA(LF)(SN)
Amphenol ICC (FCI)
77313-401-72LF
Sullins Connector Solutions
PREC026DAAN-RC
Samtec Inc.
FTM-111-03-G-DV
Samtec Inc.
STMM-125-02-L-D-SM
Molex
0015911662
Samtec Inc.

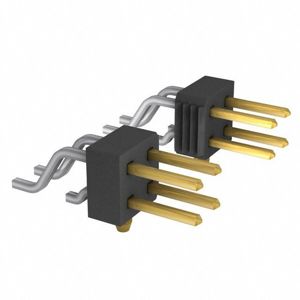

TSM-115-01-F-DH-A
