M50-3610742
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 14POS 1.27MM
$1.73
Available to order
Reference Price (USD)
1+
$1.41000
10+
$1.27900
100+
$1.09620
500+
$0.91350
1,000+
$0.78300
5,000+
$0.69426
10,000+
$0.67860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

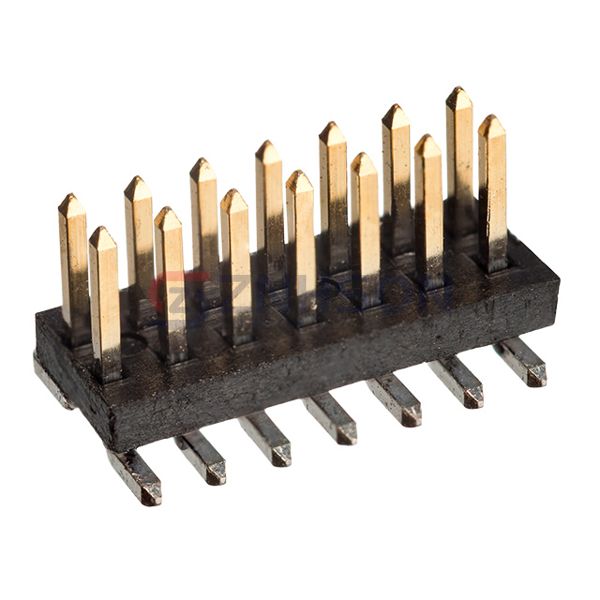

The M50-3610742 male pin header by Harwin Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Harwin Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250V
