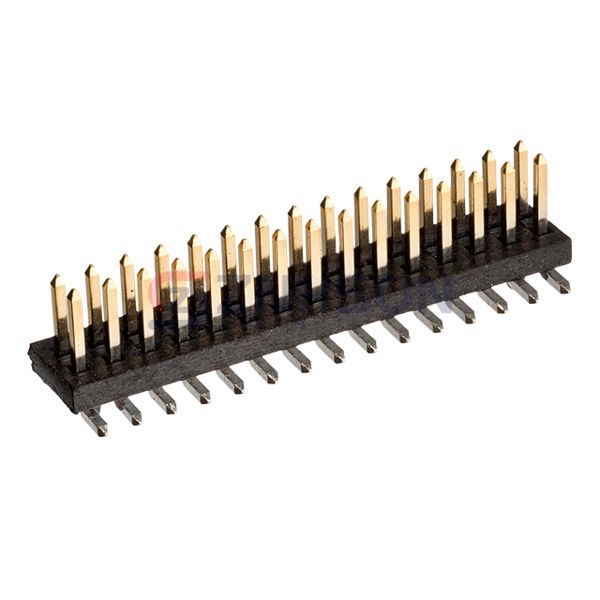

M50-3611542
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 30POS 1.27MM
$2.25
Available to order
Reference Price (USD)
1+
$3.15000
10+
$3.02600
100+
$2.52200
500+
$2.14370
1,000+
$1.82845
5,000+
$1.63930
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M50-3611542 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 250V
