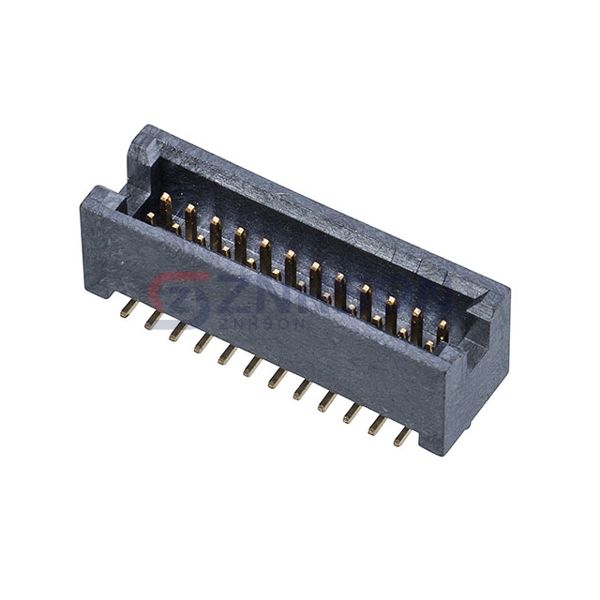

M50-4911245
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 24POS 1.27MM
$4.32
Available to order
Reference Price (USD)
1+
$3.39000
33+
$2.98333
132+
$2.71197
528+
$2.30521
1,023+
$1.96620
5,016+
$1.76280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M50-4911245 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M50-4911245 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.224" (5.69mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
