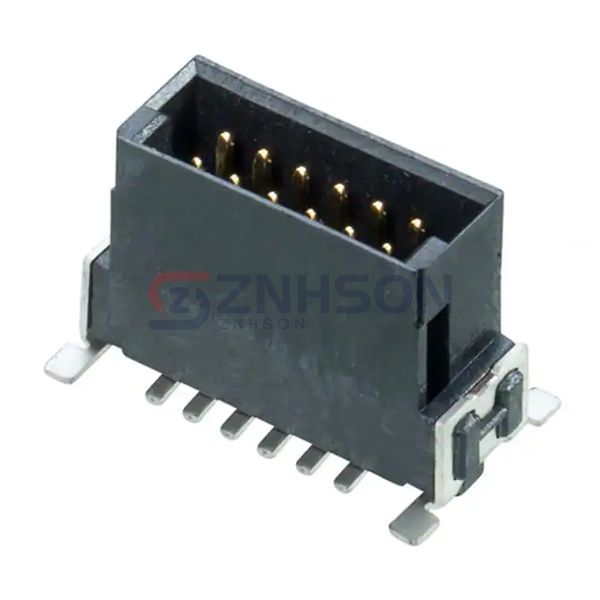

M55-7011242R
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 12POS 1.27MM
$1.48
Available to order
Reference Price (USD)
450+
$0.77800
900+
$0.68076
1,350+
$0.62240
2,250+
$0.58350
3,150+
$0.56405
11,250+
$0.51737
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the M55-7011242R rectangular connector header by Harwin Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the M55-7011242R ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Harwin Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 1.00µin (0.025µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: -
