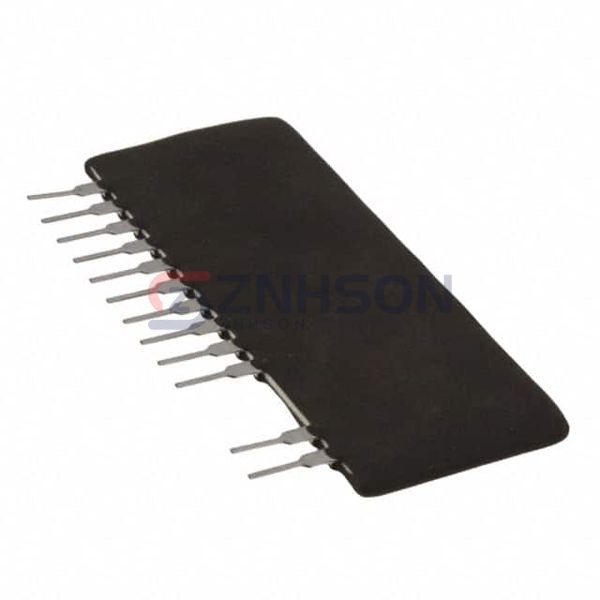

M57962CL-01
Powerex Inc.
Powerex Inc.
IC GATE DRVR LOW-SIDE MODULE
$0.00
Available to order
Reference Price (USD)
23+
$18.22000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Powerex Inc.'s M57962CL-01 represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the M57962CL-01 enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Obsolete
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 14V ~ 15V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 5A, 5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 600ns, 400ns
- Operating Temperature: -20°C ~ 60°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-SIP Module, 12 Leads
- Supplier Device Package: Module
