M74VHC1GT32DFT1G
onsemi
onsemi
IC GATE OR 1CH 2-INP SC88A
$0.33
Available to order
Reference Price (USD)
3,000+
$0.05681
6,000+
$0.04940
15,000+
$0.04199
30,000+
$0.03952
75,000+
$0.03705
150,000+
$0.03211
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M74VHC1GT32DFT1G by onsemi sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The M74VHC1GT32DFT1G's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Obsolete
- Logic Type: OR Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 3V ~ 5.5V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.53V ~ 0.8V
- Logic Level - High: 1.4V ~ 2V
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
Related Products
onsemi
NC7SVL32P5X
Texas Instruments
SN74AS30DBR
Toshiba Semiconductor and Storage
7UL1T04FU,LF
Texas Instruments
SN74AS27DR
Nexperia USA Inc.
74AHC1GU04GW-Q100H
onsemi
MC74AC32MR1
Texas Instruments
CD74HC08QM96Q1
onsemi

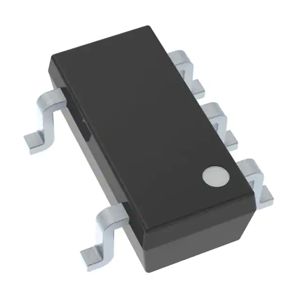

MC74VHC1G04DBVT1G
