M74VHC1GT86DFT2G
onsemi
onsemi
IC GATE XOR 1CH 2-INP SC88A
$0.32
Available to order
Reference Price (USD)
3,000+
$0.05903
6,000+
$0.05162
15,000+
$0.04421
30,000+
$0.04174
75,000+
$0.03927
150,000+
$0.03433
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the precision engineering of onsemi's M74VHC1GT86DFT2G, a standout in our Logic - Gates and Inverters inventory. This integrated circuit offers multiple logic functions in a single package, reducing board space and simplifying circuit design. Key features include Schmitt-trigger inputs for improved signal integrity, balanced propagation delays, and compatibility with TTL logic levels. The M74VHC1GT86DFT2G finds applications in digital signal processing, computer peripherals, and communication systems. From industrial PLCs to consumer electronics like gaming consoles and smart TVs, this logic IC delivers consistent performance. Its RoHS compliance and lead-free construction meet global environmental standards.
Specifications
- Product Status: Obsolete
- Logic Type: XOR (Exclusive OR)
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 3V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.53V ~ 0.8V
- Logic Level - High: 1.4V ~ 2V
- Max Propagation Delay @ V, Max CL: 8.8ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
Related Products
Nexperia USA Inc.

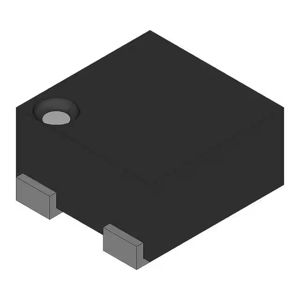

74AUP1G132GX,125
