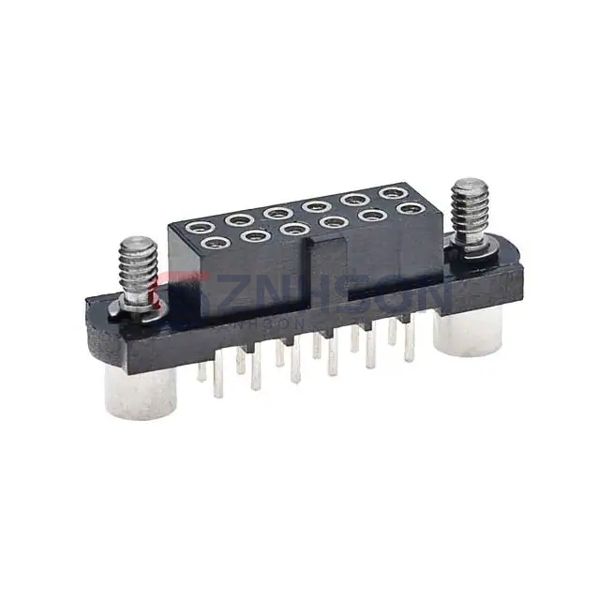

M80-4201842
Harwin Inc.
Harwin Inc.
2X9POS DIL FEMALE VERTICAL CONN
$13.18
Available to order
Reference Price (USD)
1+
$13.18083
500+
$13.0490217
1000+
$12.9172134
1500+
$12.7854051
2000+
$12.6535968
2500+
$12.5217885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-4201842 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets provide reliable solutions for high-speed data and power transmission. With advanced shielding and low insertion force, these connectors are ideal for data storage, networking hardware, and gaming consoles. Their high-reliability design ensures performance in servers, routers, and VR systems. Harwin Inc. connectors are the preferred choice for engineers seeking quality and durability in high-tech applications.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.205" (5.20mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: 7.3mm, 7.55mm
- Ingress Protection: -
- Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
- Current Rating (Amps): 2.2A
- Voltage Rating: 120VAC/DC
Related Products
Samtec Inc.
HLE-106-02-L-DV-TE-TR
Samtec Inc.
CLP-120-02-G-D-P-TR
Samtec Inc.
BCS-107-L-D-TE
Samtec Inc.
CLT-106-02-S-D-BE
Samtec Inc.
CLP-135-02-G-D-TR
Samtec Inc.
MLE-111-01-G-DV-K-TR
Samtec Inc.
SFMC-124-L2-S-D
Samtec Inc.
CLP-137-02-L-D-A

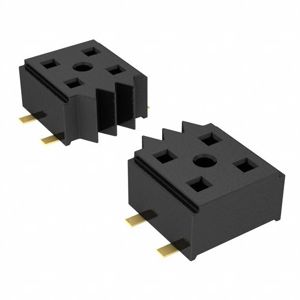

Samtec Inc.
CLT-112-02-G-D-P

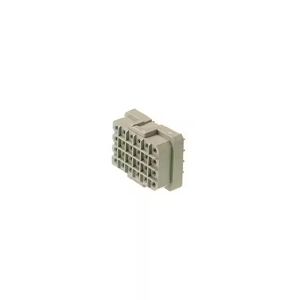

Weidmüller
