M80-5000000M1-02-PM1-00-000
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 2POS 4MM
$20.27
Available to order
Reference Price (USD)
1+
$16.72000
14+
$15.52214
112+
$11.94000
504+
$10.90520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5000000M1-02-PM1-00-000 by Harwin Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Harwin Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 40A
- Voltage Rating: 800V
Related Products
Samtec Inc.
TSM-104-01-S-SH-LC-P-TR
Samtec Inc.

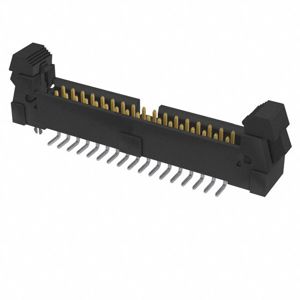

EHT-117-01-S-D-SM-LC
Samtec Inc.

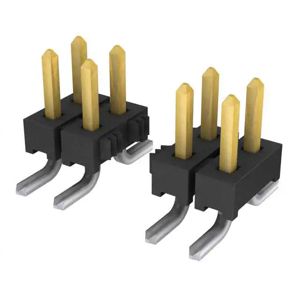

TMM-112-01-LM-D-SM-P
Molex

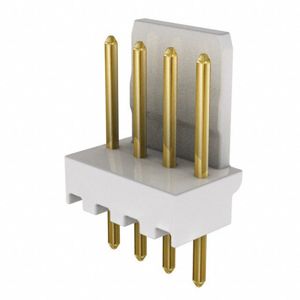

0022111041
Preci-Dip

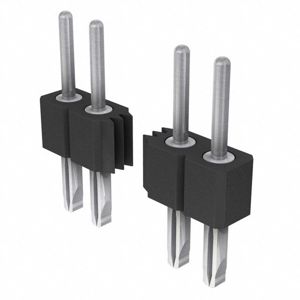

800-80-020-66-001101
Molex

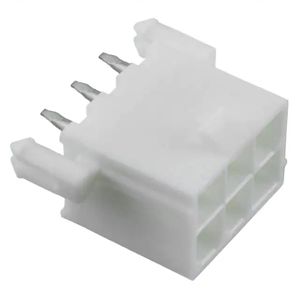

0460150603
TE Connectivity AMP Connectors
9-146278-0-31
Samtec Inc.

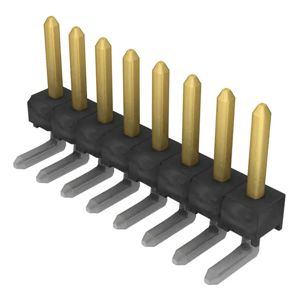

TSW-108-08-L-S-RA
