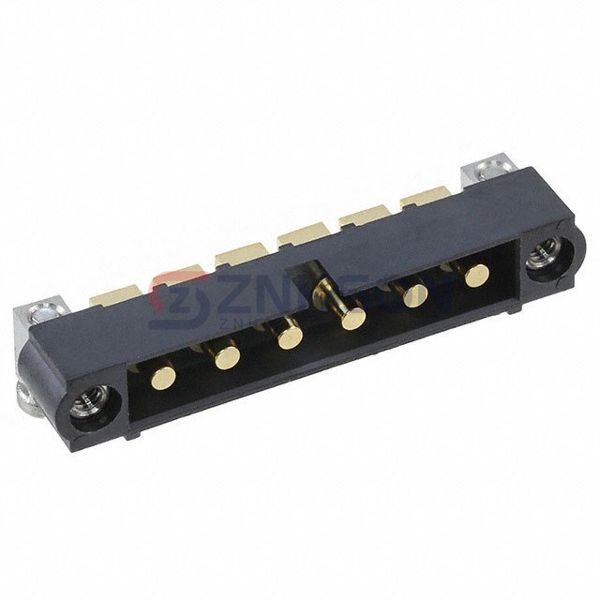

M80-5000000M5-06-PM3-00-000
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 6POS 4MM
$79.97
Available to order
Reference Price (USD)
1+
$65.94000
10+
$62.06400
100+
$53.14230
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the M80-5000000M5-06-PM3-00-000 rectangular connector header from Harwin Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Harwin Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 40A
- Voltage Rating: 800V
Related Products
Samtec Inc.
TSM-106-04-T-SH
Samtec Inc.
TMM-121-03-L-D
Samtec Inc.
TSM-105-02-L-DH-A-009
TE Connectivity AMP Connectors
2-640499-4
Samtec Inc.
EHF-117-01-F-D-SM-LC-01
Samtec Inc.

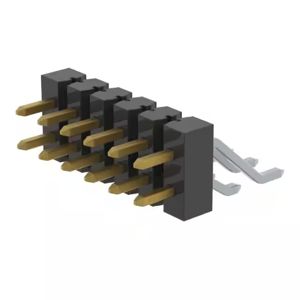

TSM-106-04-F-DH-K-TR
