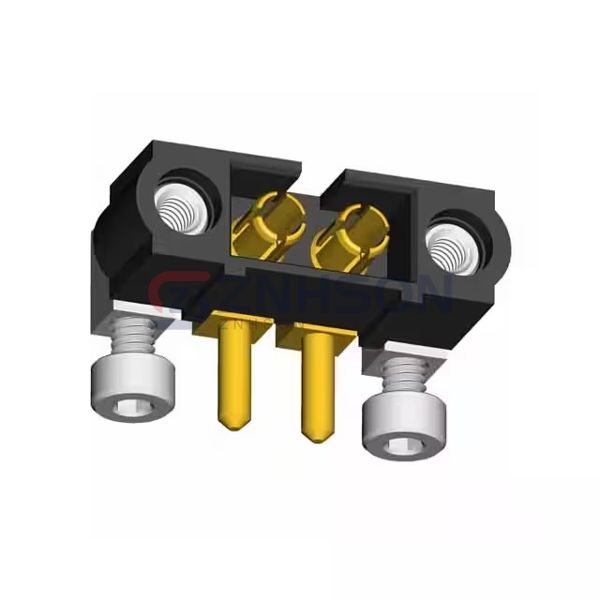

M80-5000000M7-02-334-00-000
Harwin Inc.
Harwin Inc.
CONN HEADER R/A 2POS 4MM
$36.40
Available to order
Reference Price (USD)
1+
$34.67000
14+
$31.29571
112+
$27.17304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5000000M7-02-334-00-000 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M80-5000000M7-02-334-00-000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.197" (5.00mm)
- Overall Contact Length: -
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 20A
- Voltage Rating: 800V
