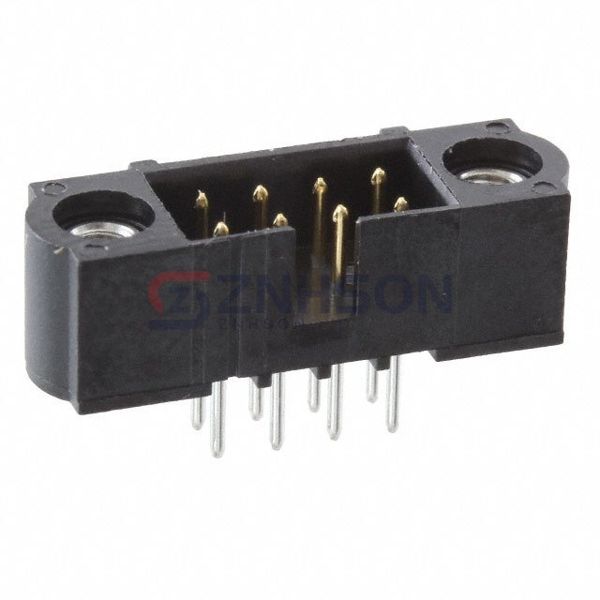

M80-5000842

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

CONN HEADER VERT 8POS 2MM

Datasheet:

M80-5000842 Datasheet

$10.81

Available to order

Reference Price (USD)

$8.83000

14+

$8.44143

112+

$7.09848

504+

$5.94734

1,008+

$5.25669

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The M80-5000842 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M80-5000842 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 8
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Threaded
Contact Length - Mating: -
Contact Length - Post: 0.128" (3.25mm)
Overall Contact Length: -
Insulation Height: 0.220" (5.60mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Features: Keying Slot, Mating Flange
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.2A
Voltage Rating: 120V
