M80-5324242
Harwin Inc.
Harwin Inc.
CONN HEADER SMD R/A 42POS 2MM
$11.56
Available to order
Reference Price (USD)
100+
$9.07630
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5324242 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M80-5324242 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.218" (5.55mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800V
Related Products
Molex
1053121108
Molex
0430452001
Amphenol Sine Systems Corp
AT13-12PC-BM01
TE Connectivity AMP Connectors
87220-4
Molex
0430450610
Molex
0901220771
3M
929730-01-31
Amphenol ICC (FCI)
77313-401-68LF
Samtec Inc.

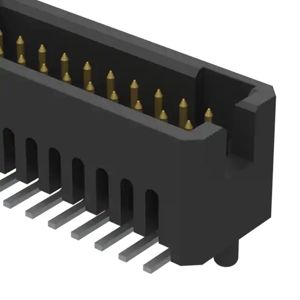

TFC-120-02-F-D-A-K-TR
