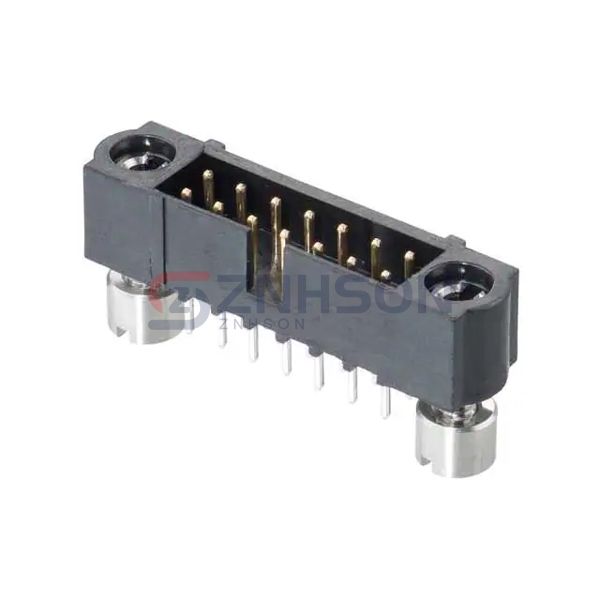

M80-5T11242ME

Harwin Inc.

Manufacturer

Harwin Inc.

Description:

CONN HDR 2MM PCB 12POS

Datasheet:

M80-5T11242ME Datasheet

$9.80

Available to order

Reference Price (USD)

$9.79958

500+

$9.7015842

1000+

$9.6035884

1500+

$9.5055926

2000+

$9.4075968

2500+

$9.309601

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The M80-5T11242ME male pin header by Harwin Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Harwin Inc. for connectors that combine innovation with durability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 12
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Turn Lock
Contact Length - Mating: -
Contact Length - Post: 0.130" (3.30mm)
Overall Contact Length: -
Insulation Height: 0.220" (5.60mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Features: Keying Slot, Mating Flange
Operating Temperature: -55°C ~ 121°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 2.2A
Voltage Rating: 800VAC/DC

Shopping cart

M80-5T11242ME

Reference Price (USD)

Specifications

Related Products

0901362107

4-5176264-5

802-10-004-10-002000

6-146269-0

0438790056

1-1318300-2

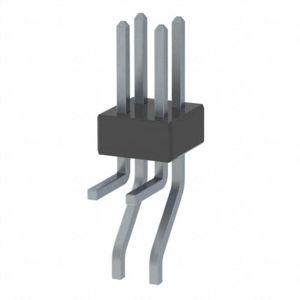

MMT-102-02-T-MT

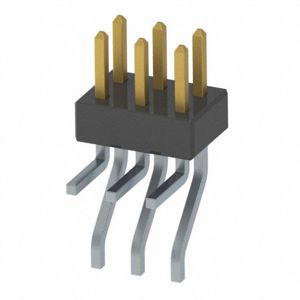

MMT-103-01-F-MT
