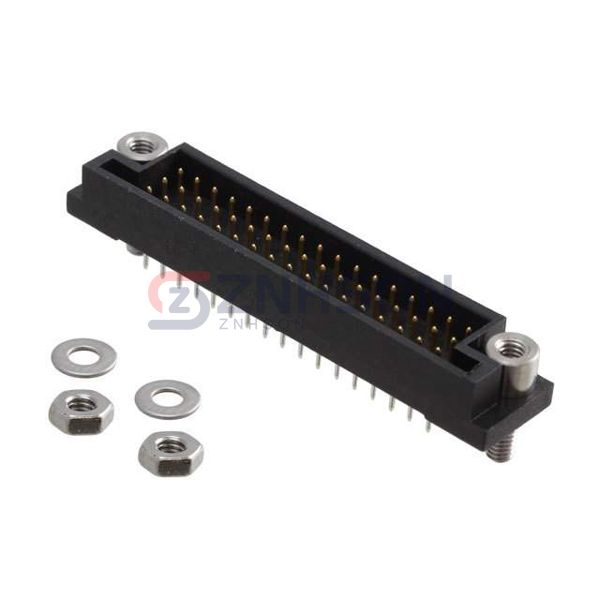

M80-7005142
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 51POS 2MM
$21.13
Available to order
Reference Price (USD)
1+
$18.84000
15+
$17.49133
105+
$13.45505
510+
$12.28890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-7005142 male pin header by Harwin Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Harwin Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 51
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.244" (6.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120V
Related Products
Samtec Inc.
TSM-124-01-L-SV-P
Preci-Dip
850-80-015-10-001101
TE Connectivity AMP Connectors
1-1586039-4
Molex
0015913144
Samtec Inc.
TSM-108-01-H-SV
Mill-Max Manufacturing Corp.
349-10-160-00-560000
TE Connectivity Erni
109906
Samtec Inc.

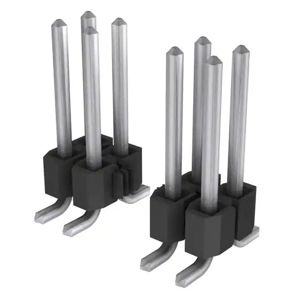

TSM-107-02-T-DV
