M80-8282622
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 26POS 2MM
$5.12
Available to order
Reference Price (USD)
504+
$4.22401
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-8282622 by Harwin Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the M80-8282622 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Harwin Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.205" (5.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800V
Related Products
Samtec Inc.
FTSH-111-01-LM-DV-K-P
Preci-Dip
852-10-068-30-001101
Amphenol ICC (FCI)
77311-118-14LF
Samtec Inc.
TFC-125-32-L-D
Samtec Inc.
TSM-108-02-LM-DV-A-P-TR
Samtec Inc.
TSM-110-01-T-DV-011-P
Samtec Inc.

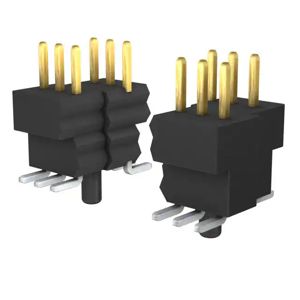

BKT-123-01-F-V-S
