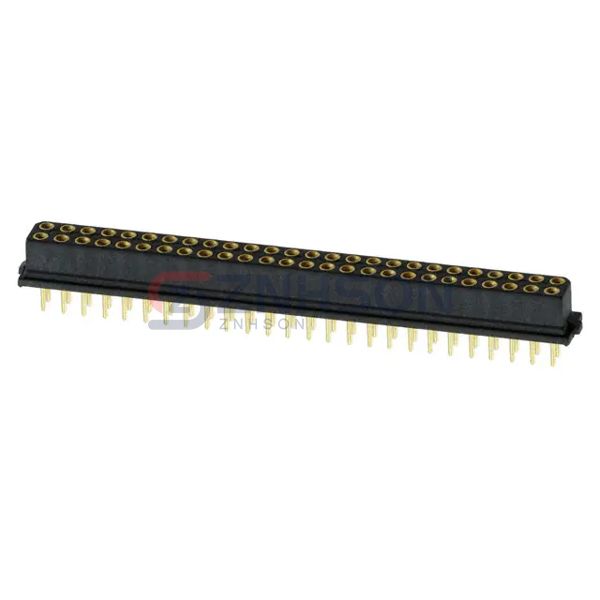

M80-8872605
Harwin Inc.
Harwin Inc.
CONN RCPT 26POS 0.079 GOLD PCB
$14.41
Available to order
Reference Price (USD)
1+
$11.88000
16+
$10.80000
104+
$9.18000
504+
$7.83000
1,000+
$7.18200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your project's performance with M80-8872605 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are built to withstand harsh conditions while maintaining excellent electrical properties. Key features include high mating cycles, EMI shielding, and ergonomic designs. Widely used in renewable energy systems, robotics, and audio/video equipment, Harwin Inc. connectors ensure seamless integration. Applications range from solar inverters to industrial robots and professional AV setups.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 26
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.202" (5.14mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 7.23mm, 7.85mm
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: 800V
