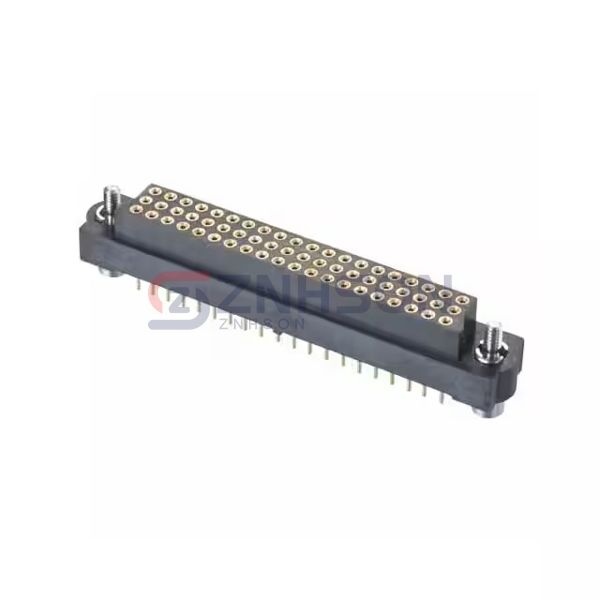

M83-LFT1F2N54-0000-000
Harwin Inc.
Harwin Inc.
CONN RCPT 54POS 0.079 GOLD PCB
$43.88
Available to order
Reference Price (USD)
10+
$36.89000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M83-LFT1F2N54-0000-000 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Harwin Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 54
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Screw Lock
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.330" (8.38mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: 10.65mm
- Ingress Protection: -
- Features: Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps): -
- Voltage Rating: 120V
