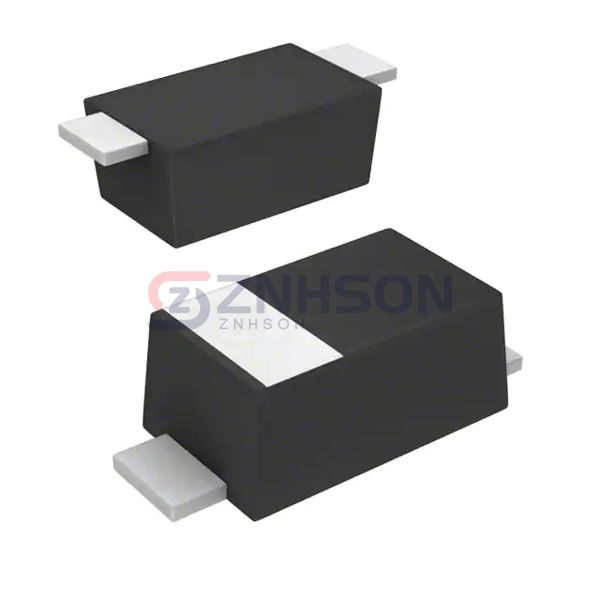

MA22D1500L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 20V 1A MINI2
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MA22D1500L single rectifier diode by Panasonic Electronic Components is a standout in the Diodes - Rectifiers - Single classification. Known for its robust construction and high rectification efficiency, it is perfect for demanding applications like electric vehicle charging stations and industrial robotics. Its low power dissipation and high thermal stability ensure optimal performance in data storage systems and server farms. The MA22D1500L is also used in consumer gadgets, such as smartphones and tablets, highlighting its adaptability. Panasonic Electronic Components's MA22D1500L is the ultimate solution for high-performance rectification needs.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 430 mV @ 1 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: 30pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: Mini2-F1
- Operating Temperature - Junction: 150°C (Max)
