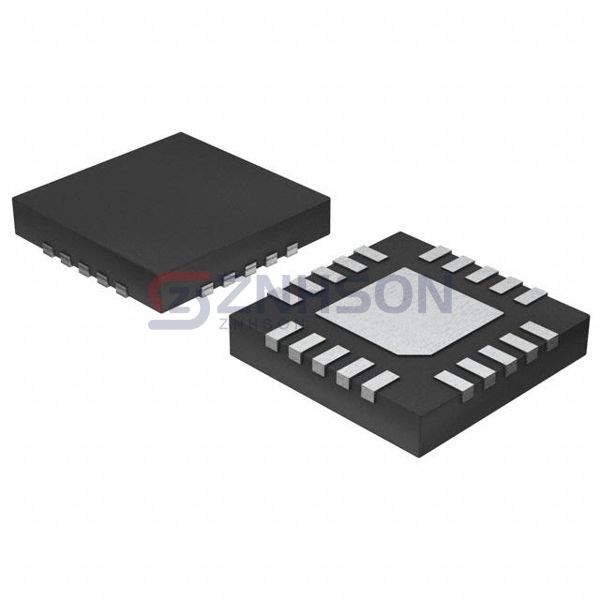

MAX14777GTP+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 20TQFN
$6.57
Available to order
Reference Price (USD)
1+
$3.59000
10+
$3.22700
75+
$3.05107
150+
$2.71200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MAX14777GTP+ - Analog Devices Inc./Maxim Integrated's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The MAX14777GTP+ enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm (Max)
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 40µs, 100µs
- -3db Bandwidth: 380MHz
- Charge Injection: 225pC
- Channel Capacitance (CS(off), CD(off)): 12pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -101dB @ 100kHz
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WFQFN Exposed Pad
- Supplier Device Package: 20-TQFN (4x4)
