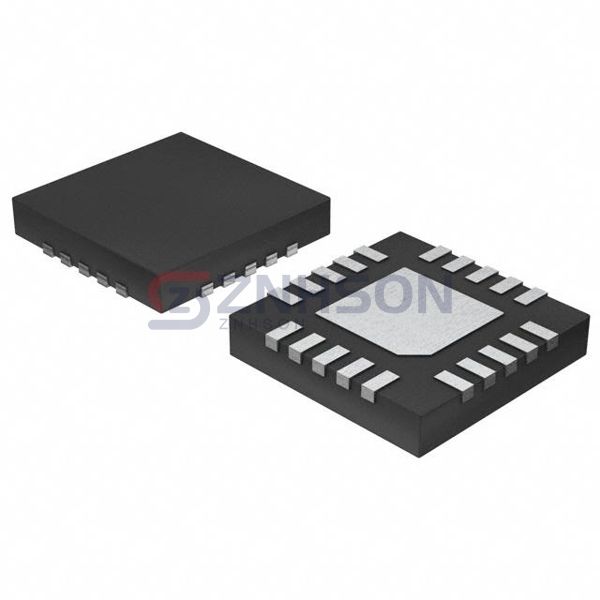

MAX14778ETP+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 4:1 20TQFN
$11.76
Available to order
Reference Price (USD)
1+
$6.73000
10+
$6.08000
60+
$5.79733
120+
$5.05000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX14778ETP+ by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX14778ETP+ is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 1.5Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 3V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 2ms, 1.5ms
- -3db Bandwidth: 75MHz
- Charge Injection: 1720pC
- Channel Capacitance (CS(off), CD(off)): 78pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -103dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-WQFN Exposed Pad
- Supplier Device Package: 20-TQFN (5x5)
