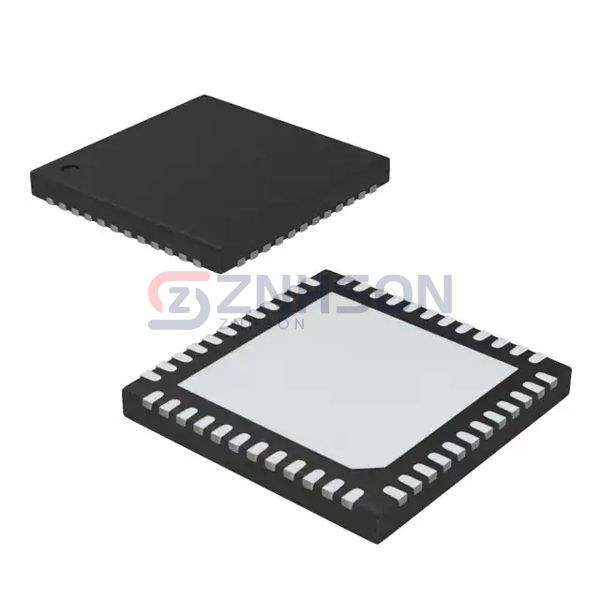

MAX14866UTM+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC ANLG SWTCH 16CH HV SPST 48TQF
$28.62
Available to order
Reference Price (USD)
2,500+
$14.17500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical switching applications, the MAX14866UTM+T by Analog Devices Inc./Maxim Integrated delivers unmatched reliability in our Analog Interface ICs portfolio. Its monolithic CMOS construction provides <5pF channel capacitance and rail-to-rail signal handling capability. The MAX14866UTM+T excels in aerospace telemetry systems, downhole drilling instrumentation, and renewable energy inverters where vibration resistance and long-term stability are paramount. Unique features include: power-off protection (signals pass when unpowered), TTL/CMOS compatible control inputs, and daisy-chain capability for channel expansion. Sample applications include: multi-zone HVAC controls, spectrometer detector arrays, and autonomous vehicle LIDAR subsystems.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 16
- On-State Resistance (Max): 13Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.7V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 4µs, 4µs
- -3db Bandwidth: 50MHz
- Charge Injection: 100pC
- Channel Capacitance (CS(off), CD(off)): 7.7pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -65dB @ 5MHz
- Operating Temperature: 0°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 48-WFQFN Exposed Pad
- Supplier Device Package: 48-TQFN (7x7)
Related Products
Intersil
ISL43144IV
Analog Devices Inc.
ADG836YRMZ-REEL7
Analog Devices Inc.
ADG512BNZ
Analog Devices Inc./Maxim Integrated
MAX4642EUA+T
Harris Corporation
DG442EJ
Analog Devices Inc.
ADG758BCPZ
Analog Devices Inc.
ADG201AKRZ-REEL
ADSANTEC

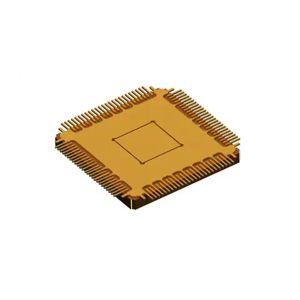

ASNT1011A-KMA
