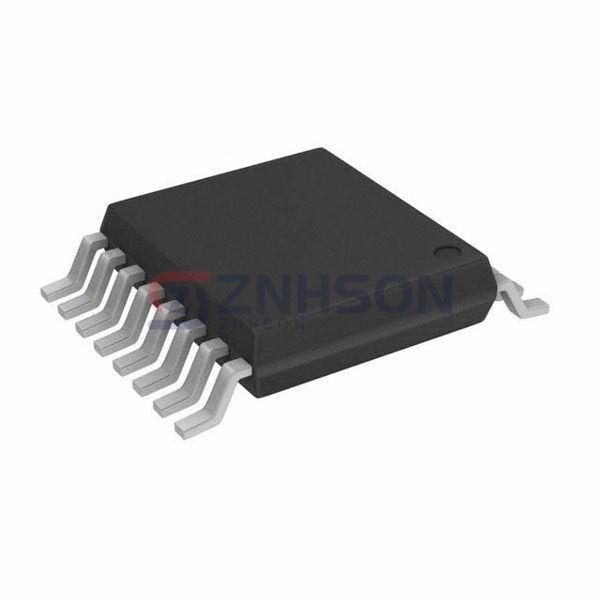

MAX309CUE+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 4X1 16TSSOP
$11.38
Available to order
Reference Price (USD)
1+
$8.11000
10+
$7.32900
96+
$6.98844
192+
$6.08750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX309CUE+ from Analog Devices Inc./Maxim Integrated's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MAX309CUE+ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 1.5Ohm
- Voltage - Supply, Single (V+): 5V ~ 30V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 150ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 26pF
- Current - Leakage (IS(off)) (Max): 750pA
- Crosstalk: -92dB @ 100kHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
