MAX4501EXK+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

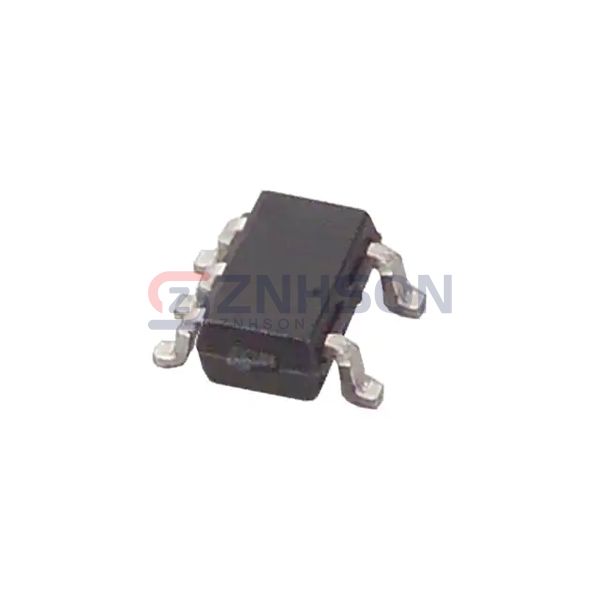

IC SWITCH SPST SC70-5
$1.98
Available to order
Reference Price (USD)
2,500+
$0.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's MAX4501EXK+T, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The MAX4501EXK+T meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 1
- On-State Resistance (Max): 250Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 2V ~ 12V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 75ns, 50ns
- -3db Bandwidth: -
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 3pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package: SC-70-5
