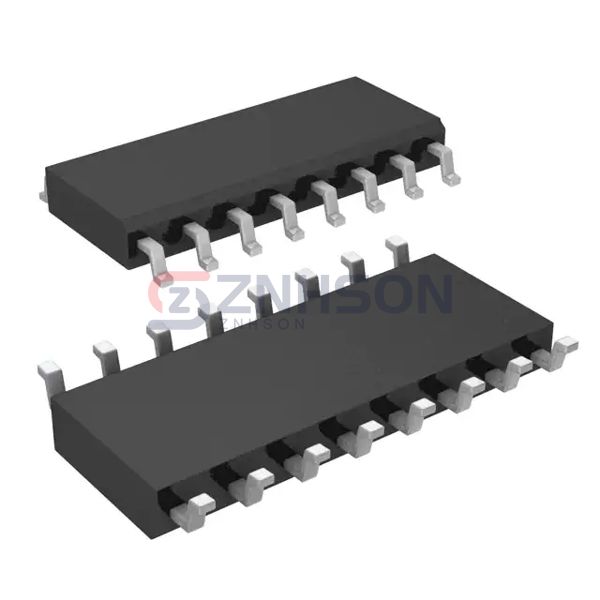

MAX4560ESE+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER TRPL 1X2 16SOIC
$4.90
Available to order
Reference Price (USD)
2,500+
$3.66250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4560ESE+T from Analog Devices Inc./Maxim Integrated is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The MAX4560ESE+T is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 160Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm
- Voltage - Supply, Single (V+): 2V ~ 12V
- Voltage - Supply, Dual (V±): ±2V ~ 6V
- Switch Time (Ton, Toff) (Max): 150ns, 120ns
- -3db Bandwidth: -
- Charge Injection: 2.4pC
- Channel Capacitance (CS(off), CD(off)): 2pF, 4pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -93dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
