MAX4614EPD+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

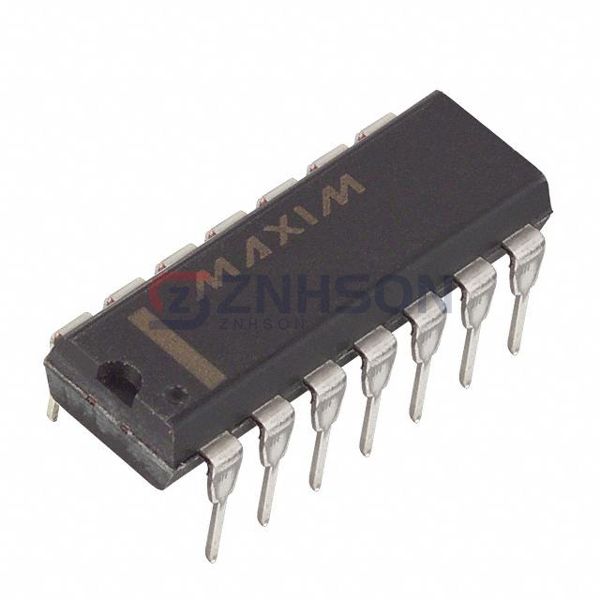

IC SWITCH QUAD SPST 14DIP
$5.35
Available to order
Reference Price (USD)
1+
$2.64000
10+
$2.37000
25+
$2.24120
100+
$1.99200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4614EPD+ from Analog Devices Inc./Maxim Integrated's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MAX4614EPD+ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 2V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 12ns, 10ns
- -3db Bandwidth: 70MHz
- Charge Injection: 6.5pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
