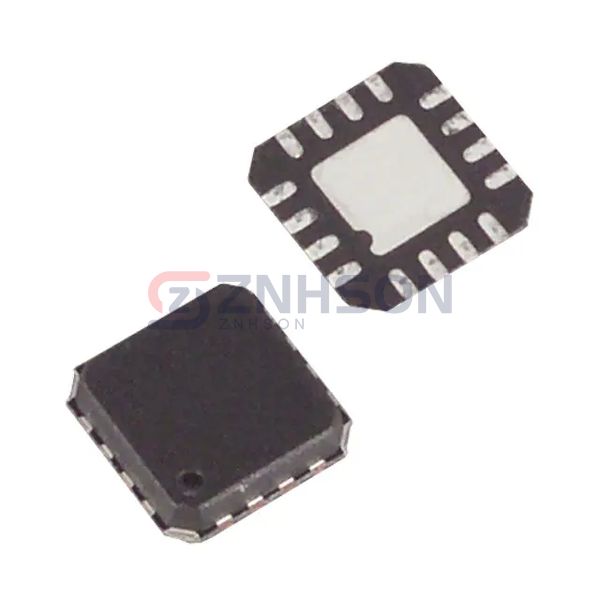

MAX4691EGE+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 8X1 16QFN
$3.32
Available to order
Reference Price (USD)
2,500+
$2.47500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's MAX4691EGE+T, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The MAX4691EGE+T meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 70Ohm
- Channel-to-Channel Matching (ΔRon): 2Ohm
- Voltage - Supply, Single (V+): 2.7V ~ 11V
- Voltage - Supply, Dual (V±): ±2V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 300ns, 100ns
- -3db Bandwidth: -
- Charge Injection: 0.1pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 68pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -75dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad
- Supplier Device Package: 16-QFN (4x4)
