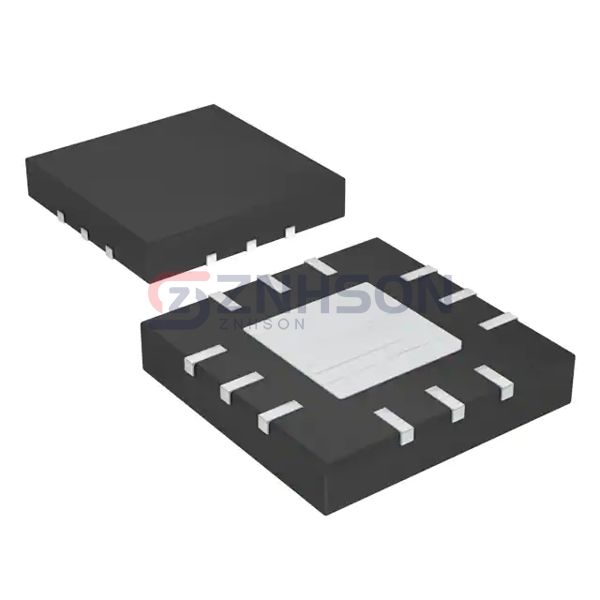

MAX4734ETC+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 4X1 12TQFN
$4.24
Available to order
Reference Price (USD)
1+
$2.29000
10+
$2.05600
25+
$1.94400
100+
$1.72800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Analog Devices Inc./Maxim Integrated's MAX4734ETC+, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The MAX4734ETC+ meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 1
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.6V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 25ns, 20ns
- -3db Bandwidth: 90MHz
- Charge Injection: 60pC
- Channel Capacitance (CS(off), CD(off)): 33pF, 117pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -56dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFQFN Exposed Pad
- Supplier Device Package: 12-TQFN (3x3)
