MAX4754AEBE+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPDT 16UCSP
$2.51
Available to order
Reference Price (USD)
1+
$2.51000
500+
$2.4849
1000+
$2.4598
1500+
$2.4347
2000+
$2.4096
2500+
$2.3845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4754AEBE+T by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX4754AEBE+T is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 850mOhm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 140ns, 50ns
- -3db Bandwidth: 10MHz
- Charge Injection: 300pC
- Channel Capacitance (CS(off), CD(off)): 180pF, 300pF
- Current - Leakage (IS(off)) (Max): 4nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

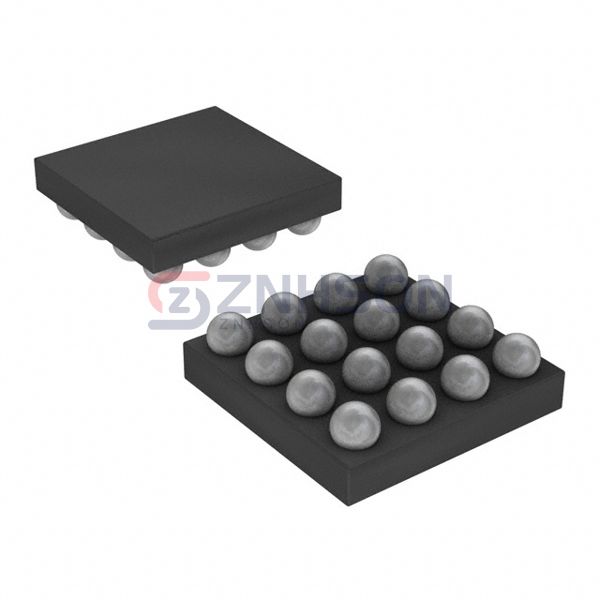

- Package / Case: 16-WFBGA, CSPBGA
- Supplier Device Package: 16-UCSP (2x2)
