MAX4760EBX+TW
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH DPDT QUAD 36UCSP
$3.81
Available to order
Reference Price (USD)
1+
$3.81000
500+
$3.7719
1000+
$3.7338
1500+
$3.6957
2000+
$3.6576
2500+
$3.6195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4760EBX+TW by Analog Devices Inc./Maxim Integrated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The MAX4760EBX+TW is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 4
- On-State Resistance (Max): 3.5Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 140ns, 50ns
- -3db Bandwidth: 150MHz
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 25pF
- Current - Leakage (IS(off)) (Max): 5nA
- Crosstalk: -95dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

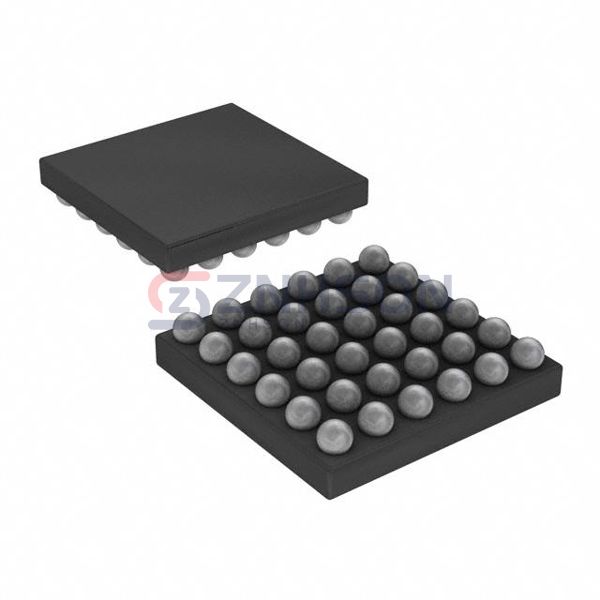

- Package / Case: 36-WFBGA, CSPBGA
- Supplier Device Package: 36-UCSP (3x3)
