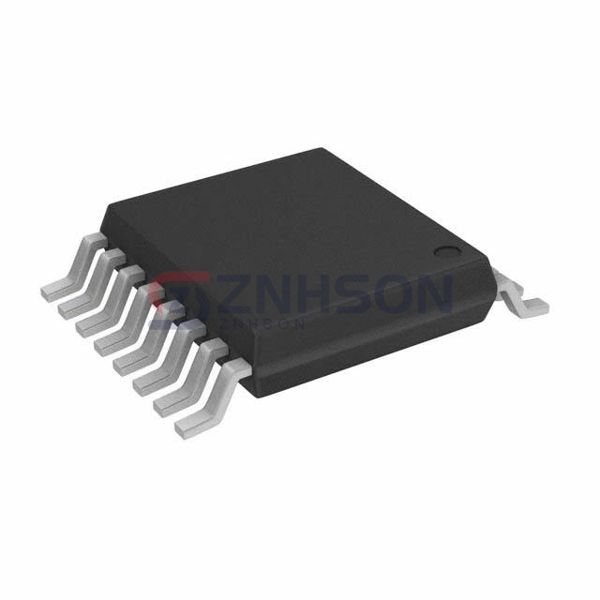

MAX4784EUE+

Analog Devices Inc./Maxim Integrated

Manufacturer

Analog Devices Inc./Maxim Integrated

Description:

IC MULTIPLEXER QUAD 2X1 16TSSOP

Datasheet:

MAX4784EUE+ Datasheet

$5.97

Available to order

Reference Price (USD)

$3.26000

10+

$2.92700

96+

$2.76750

192+

$2.46000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The MAX4784EUE+ from Analog Devices Inc./Maxim Integrated's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MAX4784EUE+ is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.

Specifications

Product Status: Active
Switch Circuit: SPDT
Multiplexer/Demultiplexer Circuit: 2:1
Number of Circuits: 4
On-State Resistance (Max): 1Ohm
Channel-to-Channel Matching (ΔRon): 100mOhm
Voltage - Supply, Single (V+): 1.6V ~ 4.2V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 25ns, 10ns
-3db Bandwidth: 123MHz
Charge Injection: 5pC
Channel Capacitance (CS(off), CD(off)): 33pF, 60pF
Current - Leakage (IS(off)) (Max): 1nA
Crosstalk: -95dB @ 1MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
