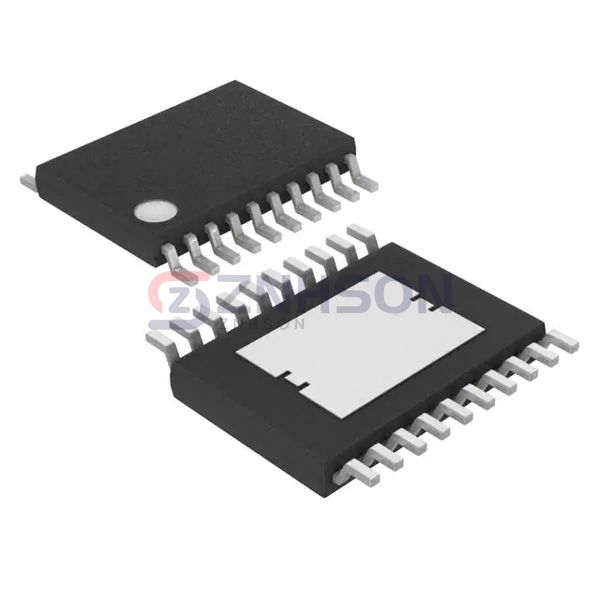

MAX4820EUP+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC PWR DRIVER N-CHAN 1:8 20TSSOP
$5.33
Available to order
Reference Price (USD)
1+
$4.32000
10+
$3.87700
74+
$3.66527
148+
$3.17655
296+
$3.01365
518+
$2.70413
1,036+
$2.28060
2,516+
$2.17200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX4820EUP+ Load Driver IC by Analog Devices Inc./Maxim Integrated is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the MAX4820EUP+ delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose Analog Devices Inc./Maxim Integrated for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Active
- Switch Type: Relay, Solenoid Driver
- Number of Outputs: 8
- Ratio - Input:Output: 1:8
- Output Configuration: Low Side
- Output Type: N-Channel
- Interface: SPI
- Voltage - Load: 2.3V ~ 5.5V
- Voltage - Supply (Vcc/Vdd): -
- Current - Output (Max): 70mA
- Rds On (Typ): 2Ohm
- Input Type: -
- Features: -
- Fault Protection: -
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 20-TSSOP-EP
- Package / Case: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Related Products
Monolithic Power Systems Inc.
MP5001DQ-LF-Z
Microchip Technology
MIC2075-1YMM-TR
Texas Instruments
TPS2220BPWP
onsemi
FPF1203LUCX
Toshiba Semiconductor and Storage

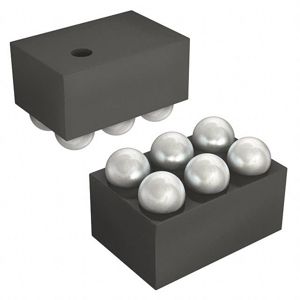

TCK101G,LF
STMicroelectronics

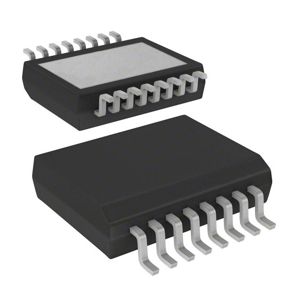

VN7020AJTR
Texas Instruments

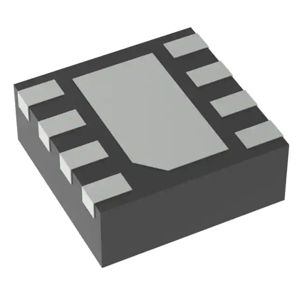

TPS22965TDSGRQ1
