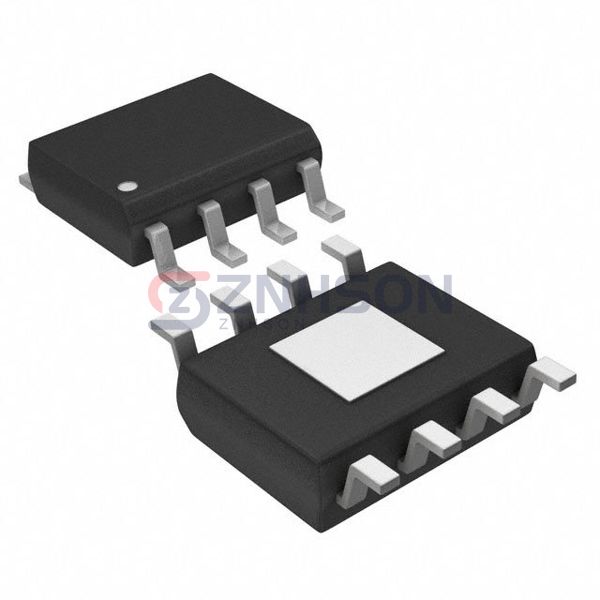

MAX5063DASA+

Analog Devices Inc./Maxim Integrated

Manufacturer

Analog Devices Inc./Maxim Integrated

Description:

IC GATE DRVR HALF-BRIDGE 8SOIC

Datasheet:

MAX5063DASA+ Datasheet

$10.69

Available to order

Reference Price (USD)

$8.65000

10+

$7.81700

25+

$7.45400

100+

$6.47210

300+

$6.18120

500+

$5.63580

1,000+

$4.90860

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Analog Devices Inc./Maxim Integrated's MAX5063DASA+ represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the MAX5063DASA+ enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.

Specifications

Product Status: Active
Driven Configuration: Half-Bridge
Channel Type: Independent
Number of Drivers: 2
Gate Type: N-Channel MOSFET
Voltage - Supply: 8V ~ 12.6V
Logic Voltage - VIL, VIH: 0.8V, 2V
Current - Peak Output (Source, Sink): 2A, 2A
Input Type: Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap): 125 V
Rise / Fall Time (Typ): 65ns, 65ns
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package: 8-SOIC-EP
