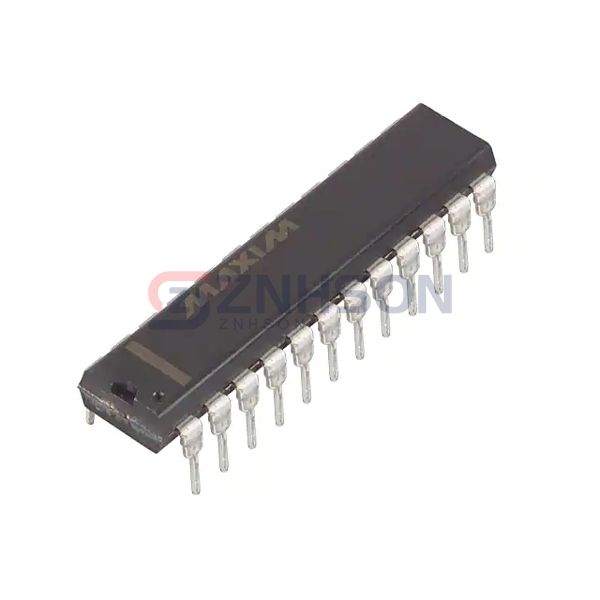

MAX516AENG+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC COMP QUAD PROGR THRES 24-DIP
$10.47
Available to order
Reference Price (USD)
1+
$5.95000
10+
$5.65300
50+
$5.38660
100+
$5.35000
250+
$5.28000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Analog Devices Inc./Maxim Integrated's MAX516AENG+ represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the MAX516AENG+'s implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Obsolete
- Type: General Purpose
- Number of Elements: 4
- Output Type: CMOS, TTL
- Voltage - Supply, Single/Dual (±): 4.75V ~ 16.5V
- Voltage - Input Offset (Max): -
- Current - Input Bias (Max): 0.3µA @ 16.5V
- Current - Output (Typ): -
- Current - Quiescent (Max): 10mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): 1.5µs
- Hysteresis: -
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 24-DIP (0.300", 7.62mm)
- Mounting Type: Through Hole
- Supplier Device Package: 24-PDIP
Related Products
onsemi
NCV2200SN1T1G
Microchip Technology
MCP6549T-I/ST
Analog Devices Inc./Maxim Integrated
MAX40008ANT+T
Analog Devices Inc./Maxim Integrated
MAX9141ESA+
Texas Instruments
TLV9022DDFR
Texas Instruments
TLV3011AIDCKR
onsemi
NLV14007UBDR2G
Texas Instruments

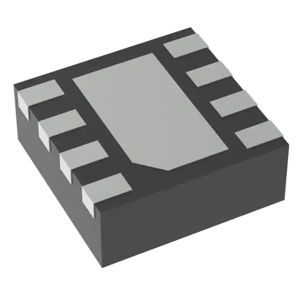

TLV7042DSGR
