MAX8559ETAAA+T
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC REG LINEAR 3.3V/3.3V 8TDFN
$1.28
Available to order
Reference Price (USD)
2,500+
$1.02600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MAX8559ETAAA+T from Analog Devices Inc./Maxim Integrated is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 6.5V
- Voltage - Output (Min/Fixed): 3.3V, 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.12V @ 100mA, 0.12V @ 100mA
- Current - Output: 300mA, 300mA
- Current - Quiescent (Iq): 290 µA
- Current - Supply (Max): -
- PSRR: 70dB ~ 54dB (10kHz ~ 100kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-WDFN Exposed Pad
- Supplier Device Package: 8-TDFN (3x3)
Related Products
ABLIC Inc.
S-1315D27-A6T2U3
Texas Instruments
LP3995ITLX-1.5/NOPB
ABLIC Inc.
S-11L10D27-M5T1U
ABLIC Inc.
S-1172B16-U5T1G
Texas Instruments
UCC387PW
ABLIC Inc.
S-1137B33-I6T2U
Texas Instruments
LP3985IM5-3.3/NOPB
Microchip Technology

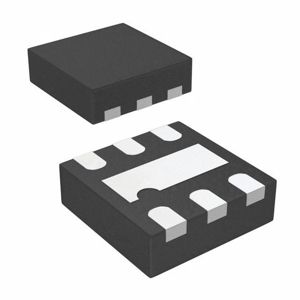

MIC5247-1.5YML-TR
Nisshinbo Micro Devices Inc.

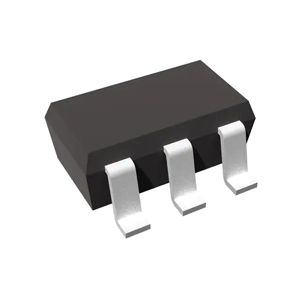

RP154N021B-TR-FE
