MBT3904DW1T1G-M01
onsemi
onsemi
TRANS NPN SS 40V 0.2A SC88
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets power in the MBT3904DW1T1G-M01 BJT Array by onsemi. Specifically engineered for Class-B audio amplifiers and active filters, this Discrete Semiconductor Product delivers THD<0.1% for studio-grade sound reproduction. Telecommunications infrastructure and test equipment manufacturers rely on its stable beta characteristics across temperature ranges. The MBT3904DW1T1G-M01 comes with anti-oxidation terminals, ensuring solderability even after prolonged storage.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN (Dual)
- Current - Collector (Ic) (Max): 200mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): 50nA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
- Power - Max: 150mW
- Frequency - Transition: 300MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SC-88/SC70-6/SOT-363
Related Products
Panasonic Electronic Components
XN0440100L
Panasonic Electronic Components
DMG904010R
Rohm Semiconductor
IMX17T110
Rohm Semiconductor
EMX5T2R
Fairchild Semiconductor
KSE13007FSMTU
Nexperia USA Inc.
BC846S/ZLH
Diodes Incorporated
ZDT717TA
onsemi
NJX1675PDR2G
Panasonic Electronic Components

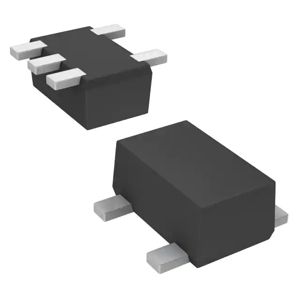

DME50B010R
