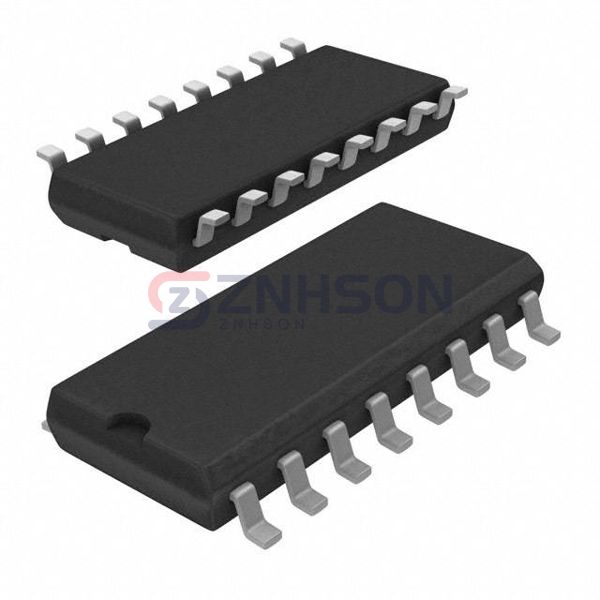

MC14551BFG
onsemi
onsemi
IC MUX/DEMUX QUAD 2X1 16SOEIAJ
$1.34
Available to order
Reference Price (USD)
1+
$1.34000
500+
$1.3266
1000+
$1.3132
1500+
$1.2998
2000+
$1.2864
2500+
$1.273
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with onsemi's MC14551BFG, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The MC14551BFG meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 280Ohm
- Channel-to-Channel Matching (ΔRon): 10Ohm
- Voltage - Supply, Single (V+): 3V ~ 18V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 17MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 16-SOEIAJ
