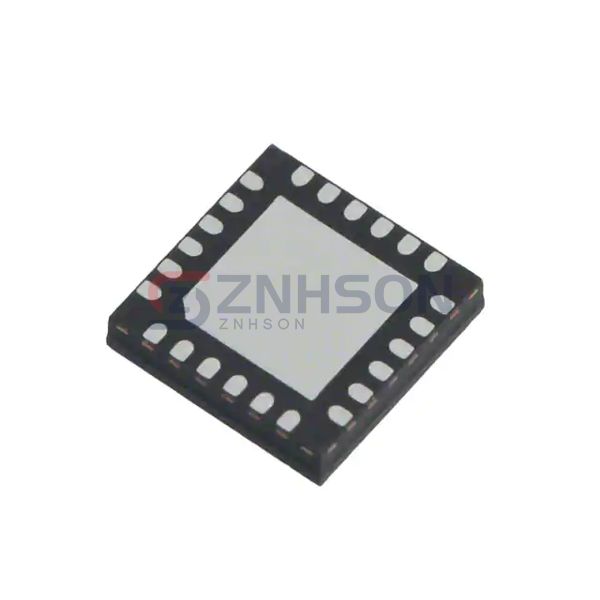

MC15XS3400DPNA
NXP USA Inc.
NXP USA Inc.
IC PWR SWITCH N-CHAN 1:1 24PQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MC15XS3400DPNA by NXP USA Inc. is a top-tier Power Distribution Switch and Load Driver IC, engineered for optimal performance in power-sensitive applications. As part of the PMIC category, it excels in managing power distribution with minimal energy loss. Key features include adjustable current limits, fast response times, and robust ESD protection. Whether you're designing consumer electronics, automotive systems, or IoT devices, the MC15XS3400DPNA provides the reliability you need. Trust NXP USA Inc. for innovative IC solutions that power the future of technology.
Specifications
- Product Status: Obsolete
- Switch Type: General Purpose
- Number of Outputs: 4
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: SPI
- Voltage - Load: 6V ~ 20V
- Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V
- Current - Output (Max): 6A
- Rds On (Typ): 15mOhm
- Input Type: -
- Features: Internal PWM, Slew Rate Controlled, Watchdog Timer
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 24-PQFN (12x12)
- Package / Case: 24-PowerQFN
